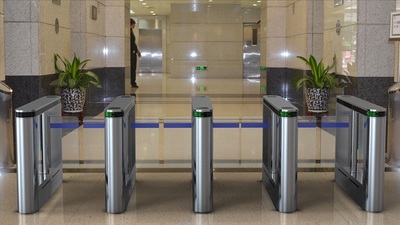

Basic performance of high-end speed gate:
1. The box body is made of SUS304 stainless steel or aluminum alloy material, with stainless steel thickness ≥1.5mm and aluminum thickness ≥2.0mm; the surface is brushed to resist fingerprints; the overall transparency is ensured, and the side panels are made of transparent ultra-white tempered glass with a thickness of 8~10mm, which is tempered.
2. Length of channel box: 1500mm-1900mm; Width of channel box: 100mm-150mm.
3. The standard aisle has a clear width of 650mm, while the widened aisle spans 800-950mm (to be confirmed based on site conditions).
4. Door wing material: ultra-clear glass, thickness 8~10mm, tempered treatment;
5. Door wing movement mode: bidirectional swinging;
6. Door wing activation response time: < 0.1 seconds;
7. Access mode settings: normally closed, normally open, one-way setting, free access setting, and access is only allowed after receiving a signal indicating permission to pass;
8. Passage speed: The passage speed must be ≥30 people/minute (with door wings closed); the standard opening/closing speed should not exceed 0.6 seconds;
9. Continuous card swiping function: It allows for continuous card swiping, facilitating the continuous entry and use of staff during peak commuting times, greatly increasing the throughput;
10. Restrictions for unauthorized personnel: access alarm, tailgating alarm, and anti-intrusion alarm;
11. Safety precautions: anti-pinch, emergency opening, fire linkage;
12. Operating temperature: -10℃~60℃; operating humidity: ≤90%, no condensation;
13. Power supply: AC220V±10V, 50Hz;
14. External interface:
a) Integration with access control and other authorization systems: It can be seamlessly integrated with facial recognition or other access control systems, enabling integration into the access control system management. The gate body must provide suitable installation space for access control/QR code/biometric recognition systems, without affecting the size and aesthetics of the gate body.
b) Integration with fire alarm system: The turnstile provides an interface for integration with the fire alarm system, enabling linkage with the fire alarm. It can be set to automatically open, facilitating evacuation.
c) When the external power supply is interrupted or the system crashes, the gate wings should automatically open.
