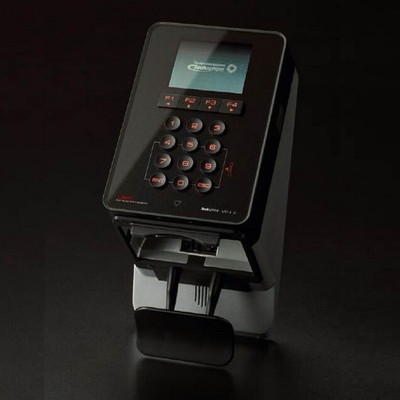

Hand vein recognition system
technical parameters
Authentication method: Near-infrared scanning
Certification speed: 0.4 seconds per round
Certification accuracy: False Acceptance Rate (FAR) 0.0001%
The False Rejection Rate (FRR) is 0.01%
Registration method: PIN (2-24 digits) + vein login × 2 times
IC Card + Vein login × 2 times
Number of users: 50,000
Number of managers: 50,000 (anyone who logs in can be considered a manager) Environmental parameters
Power Supply: DC 12V~15V/1.*** (Supplied via VP-II XG or AC power adapter)
Operating temperature: -5 to 50°C
Operating humidity: 10% ~ 90% physical parameter
Material: Scanner: PC + ABS
Back and mounting plate: Metal
Weight: 820g (without card reading module)
Dimensions: 109×247×117mm (For detailed information, please refer to the drawing) Software parameters
Display screen: 2.8-inch 65K color LCD (fixed panel)
Service life: 10 years
Keys: 0-9 keys, ENT key, ESC key, and 4 function keys
External interface: RJ45 network TCP/IP (VP-II X connects to the server)
Wiegand (Input: 1, Output: 1)
Communication serial port: 3
RS232： 2
RS485: 1 (RS485 module needs to be purchased separately)
AUX: Digital I/O (Input: 2, Output: 2)
Memory: 512MB NAND flash memory
Store usage information for 50,000 items
Store 500,000 event records
Hardware version, GUI, text format
USB 2.0 USB storage (version upgrade, DB transfer)
It must be used in the presence of a manager
Other uses: Wireless LAN (requires a special version)
Card reading module Type of card reading module (options)
125Khz HID Prox
13.5Mhz Mifare ／DESFire／TWIC／PIV
13.5Mhz HID iClass
13.5Mhz FeliCa
NFC card reading
125KHz corresponds to 13.5Mhz
RTC (Real Time Clock) automatically maintains the clock, and its networking status is consistent with that of the master device.
Voice: Sound emission (English mode) / Operation sound
IR sensor automatically detects the presence or absence of the user and wakes up from sleep mode
Tamper-proof switch, set on the back
Main functions
Management Test Mode
The system is set to test mode at the factory and registered as a temporary system administrator (installer). System settings must be made through the administrator menu.
In test mode, after startup, the system administrator registers for a few seconds of menu display.
manager
For management functions such as user login/deletion and changes to system composition, the administrator menu can be accessed.
Registration/Authentication User Authentication Methods: PIN, HID Prox Card, IC Card, Password, Fingerprint-free
Users of PIN or HID Prox cards: The user's vein data is stored in the internal memory (which can store data for 50,000 individuals)
IC card (Mifare/DESFire/HID iClass) user: The user's vein data can be stored in the internal memory of the card.
Password user: By using a PIN or HID Prox card and a 4-10 digit password, access can be granted without the need for hand vein scanning.
For users who do not require vein authentication: Access can be granted solely through a PIN, HID Prox card, or IC card, without the need to authenticate via a vein pattern.
If necessary, the user's venous data can be stored on the server (application software NetControl-X)
Entry and exit management, time period management
200 time slots (including holidays) can be set
Time zones are managed through user/access permission management
Grant access rights to management based on unit units
Anti-submarine infiltration function
Each user can set different authentication methods
Controller (VP-II XG)
It is connected to an electronic lock and requires the use of a controller (VP-II XG)
VP-II XG is installed on the inside of the door
It can monitor the status of the door
Automatic monitoring of fire alarms and automatic unlocking
(Utilizing digital input port)
Wiegand signal card reader / Entry and exit system (PACS) from other companies Wiegand signal
Support 128bit Wiegand signal
Accepts input signals from external card readers/Can be used in conjunction with other companies' entry and exit management systems (PACS)
Clock and data interface
The clock and data input and output of the Wiegand input/output port can be used
Card recognition function
Wiegand code analysis function: bit code length, parity bit, bit code, detected card number
Prox, Mifare, DESFire, HID iClass, FeliCa: Read the card ID. The vein data is stored inside the IC card.
Anti-tampering countermeasures
Safety screw: Remove the screw from the hole with a rubber cap and tighten it
The device can be fixed on the backplane.
anti-tamper switch
It is set on the backplane. Upon detecting the signal of disassembly, it will trigger an alarm
And it will alert the server
User operation interface supports multiple languages (Japanese, English, Korean, Traditional Chinese, Simplified Chinese)
Sound/Warning tone
Valid/invalid button
Chart and Graph Production (Capable of creating personalized icons for clients)
